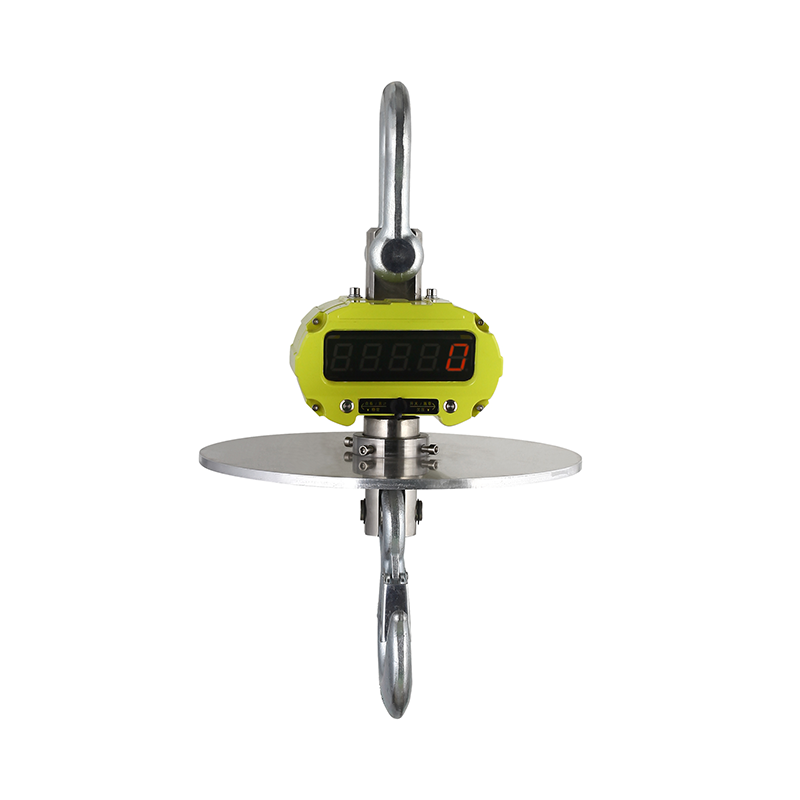

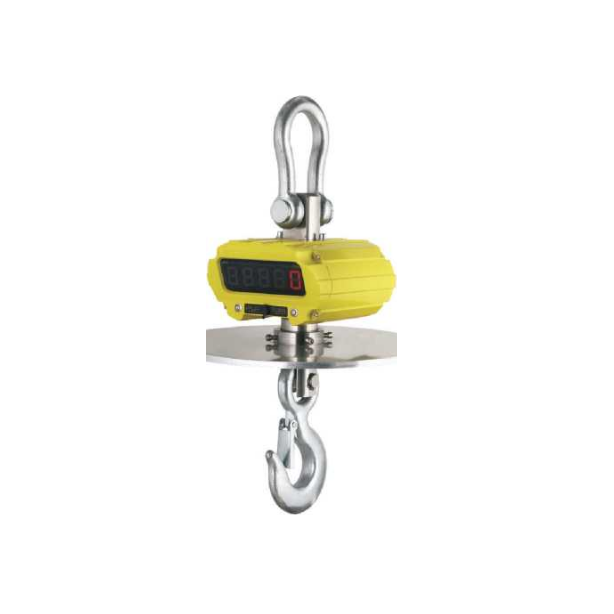

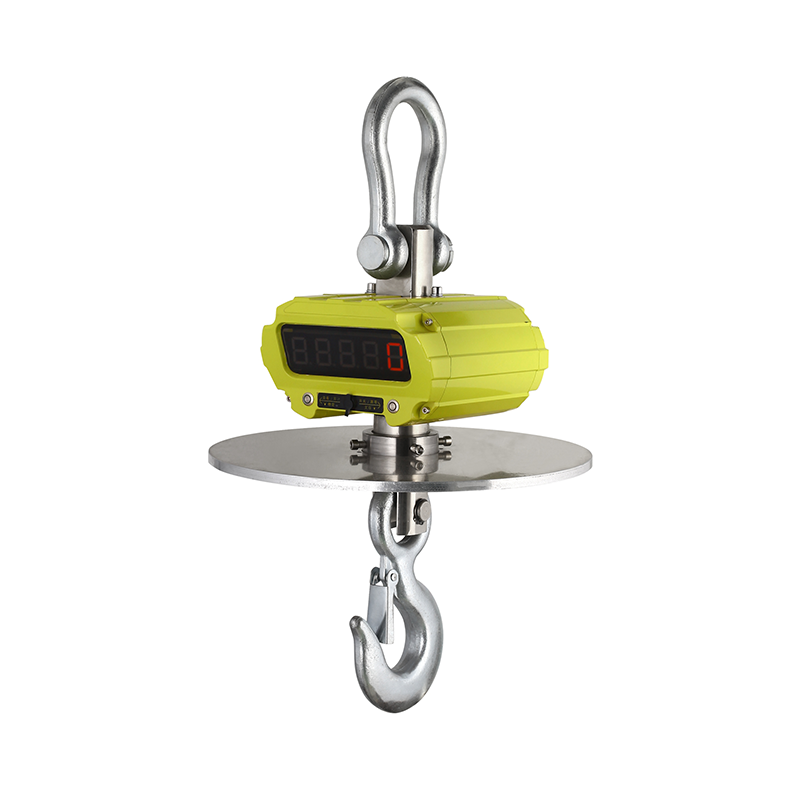

OCS-H1-RT Crane Scale
Features
● High quality alloy steel load-bearing components
● All steel chrome plated casing
● High strength white zinc suspension ring
● Flexible ring eye hook
● Series specifications: 1T-30T
● High temperature resistant customized version
● Mutiple display instrument options: 168 handheld display instrument; 268 Handheld Printing Display Device; 568 Stainless Steel; Exquisite Display Printer; 5-inch display screen.
|
Accuracy class |
이ML III |
Tare range |
100%F.S |
|
Zero range |
4%F.S |
Safe load |
120%F.S |
|
Limit load |
500%F.S |
Overload alarm |
100%F.S.+9e |
|
The battery specification |
3.6V/2500Ah |
Continuous working time |
>80h |
|
The charger specification |
4.5V/500mA |
The remote control distance |
210m |
|
Temperature range |
80°C > |
|
|
|
Model |
(T) |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
H(mm) |
kg |
Pack size |
|
H1 |
1 |
100 |
400 |
27 |
400 |
130 |
525 |
12 |
42.5*40.5*40 |
|
2 |
100 |
400 |
32 |
400 |
130 |
527 |
12 |
42.5*40.5*40 |
|
|
3 |
100 |
400 |
35 |
400 |
130 |
530 |
13 |
42.5*40.5*40 |
|
|
5 |
120 |
400 |
40 |
400 |
130 |
590 |
17 |
42.5*40.5*40 |
|
|
10 |
125 |
400 |
45 |
400 |
130 |
655 |
24 |
42.5*40.5*40 |
Size
