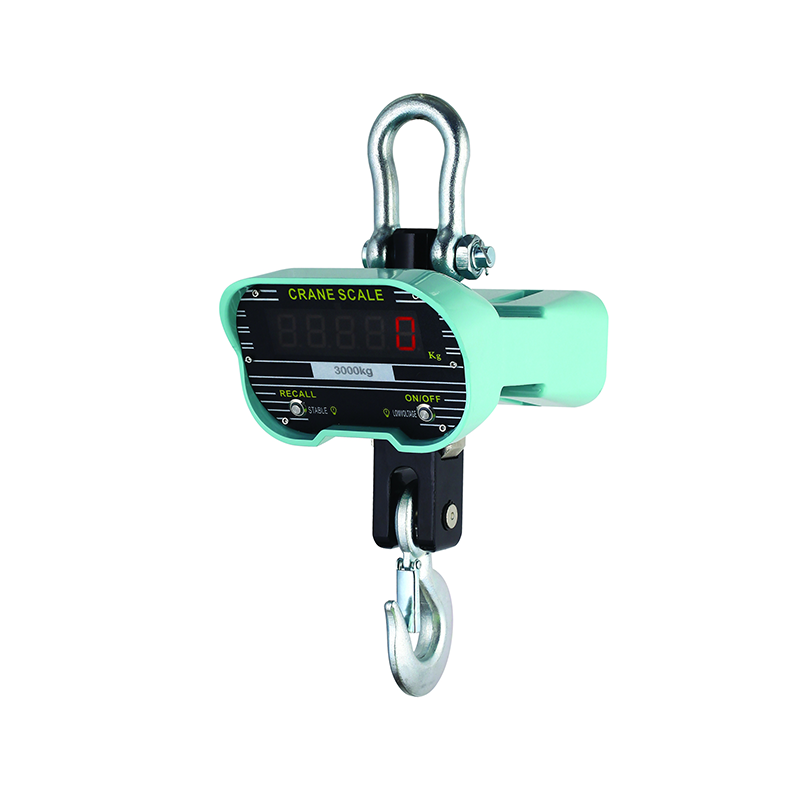

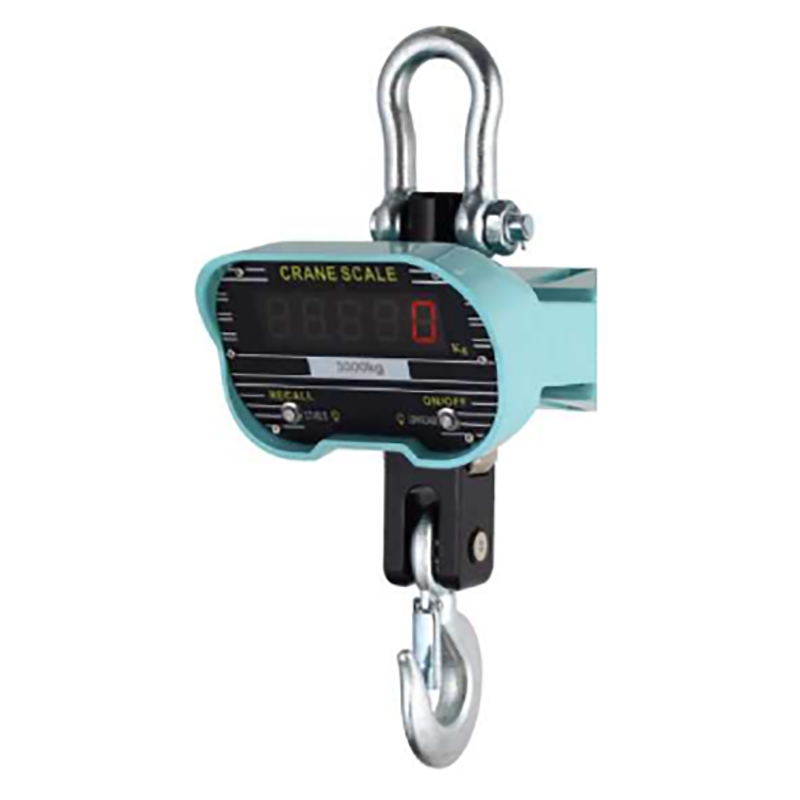

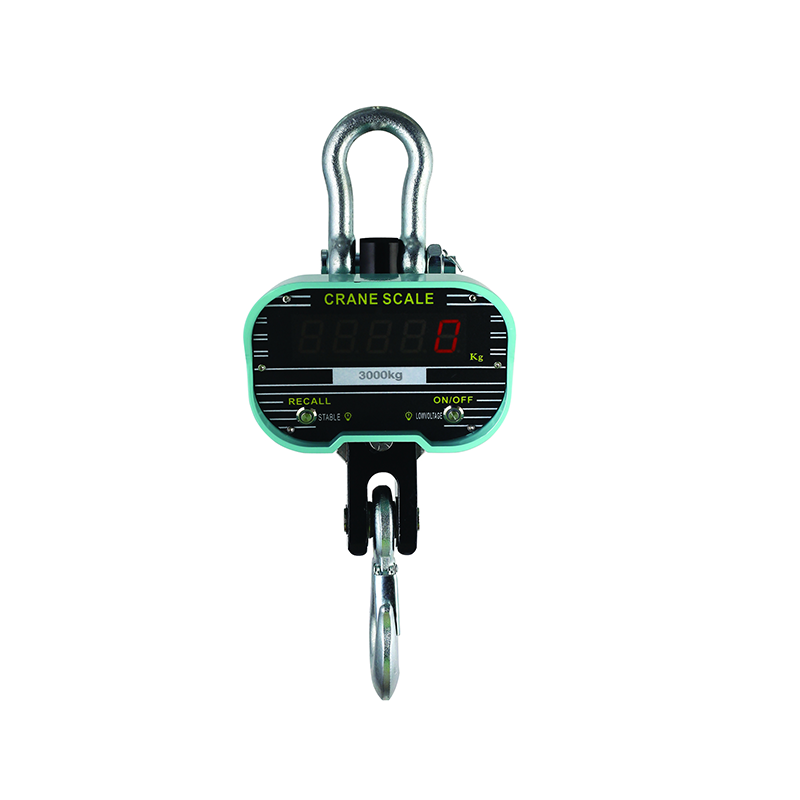

OCS-H6 Crane Scale
Features
•High quality alloy steel load components
•All steel impact resistant casing
•Word high 30mm led display
•High intensity activity type rings
•High-capacity rechargeable battery
•Stainless steel panel buttons
•Infrared remote control
•Series specifications: 1000kg to 50000kg
•High quality alloy steel load components
•All steel impact resistant casing
•Word high 30mm led display
•High intensity activity type rings
•High-capacity rechargeable battery
•Stainless steel panel buttons
•Infrared remote control
•Series specifications: 1000kg to 50000kg
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Specification
| Accuracy class | 이ML III |
| Tare range | 100%F.S |
| Zero range | 4%F.S |
| Safe load | 120%F.S |
| Limit load | 500%F.S |
| Overload alarm | 100%F.S.+9e |
| The battery specification | 6V/10Ah |
| Continuous working time | >80h |
| The charger specification | 9V/1500mA |
| The remote control distance | NlOm |
| Temperature range | -10°C 〜40°C |
Dimension and Division
| model | (T) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | H(mm) | kg | Pack size |
| H6 | 1 | 95 | 345 | 27 | 230 | 160 | 470 | 11.1 | 49x45x29 |
| 2 | 95 | 345 | 32 | 230 | 160 | 475 | 11.3 | 49x45x29 | |
| 3 | 95 | 345 | 37 | 230 | 160 | 570 | 12.2 | 49x45x29 | |
| 5 | 115 | 345 | 40 | 230 | 160 | 610 | 16.9 | 49x45x29 | |
| 10 | 115 | 345 | 50 | 230 | 160 | 725 | 30.3 | 49x45x29 | |
| 15 | 115 | 345 | 65 | 230 | 160 | 820 | 33 | wood case 80x40x40 | |
| 20 | 225 | 345 | 85 | 230 | 160 | 1100 | 52 | wood case 80x40x40 | |
| 30 | 160 | 345 | 105 | 230 | 160 | 1150 | 95 | wood case 80x40x40 |
