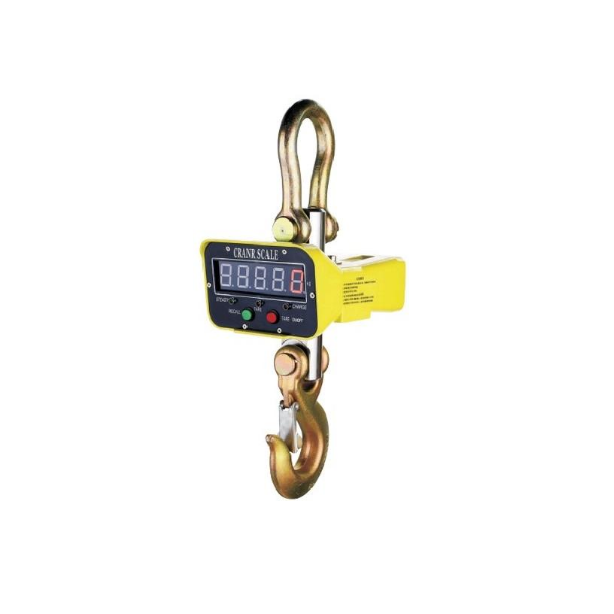

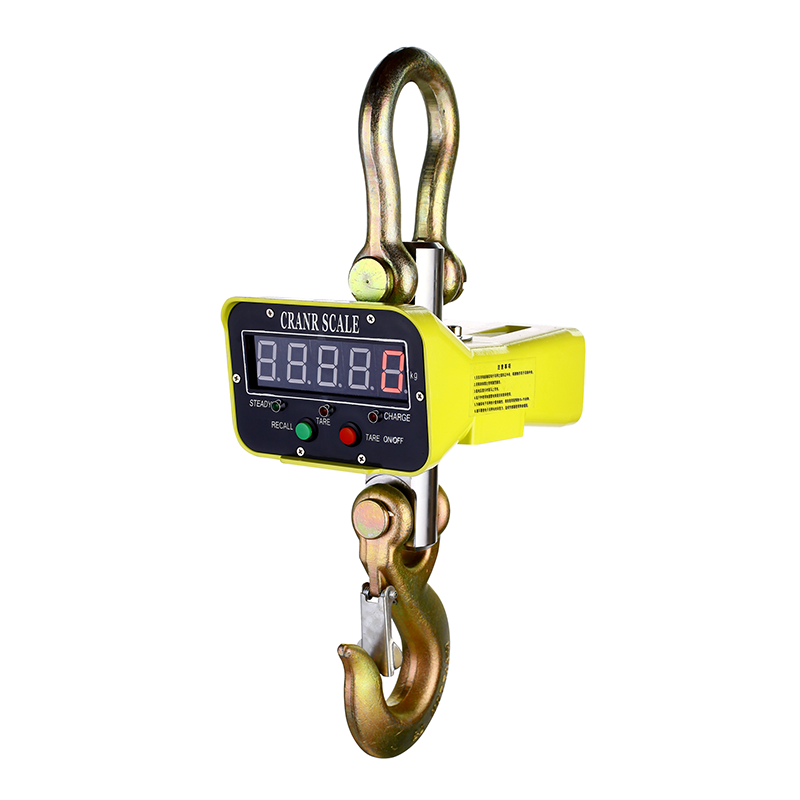

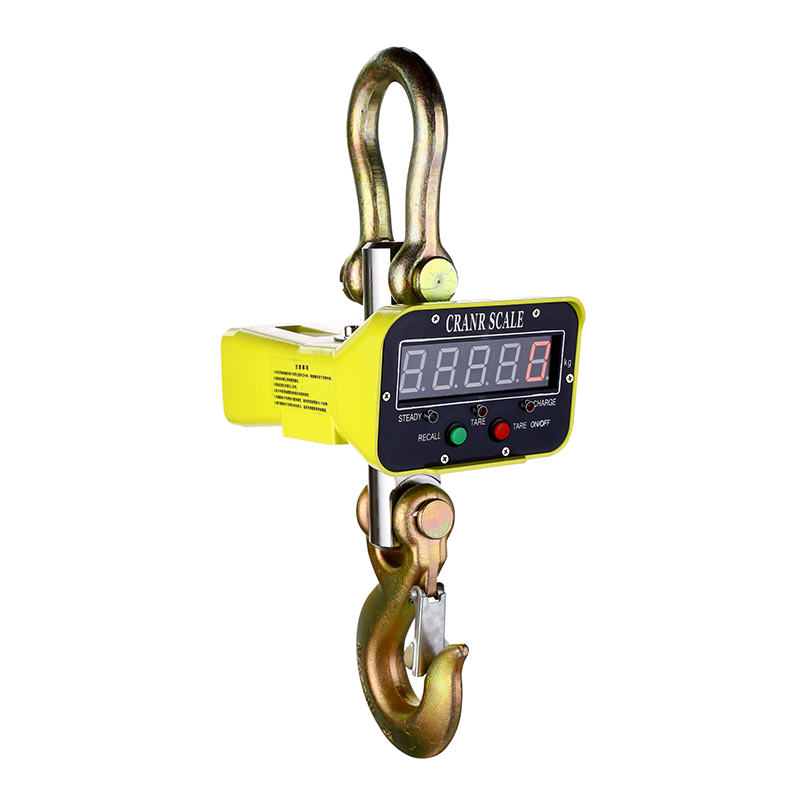

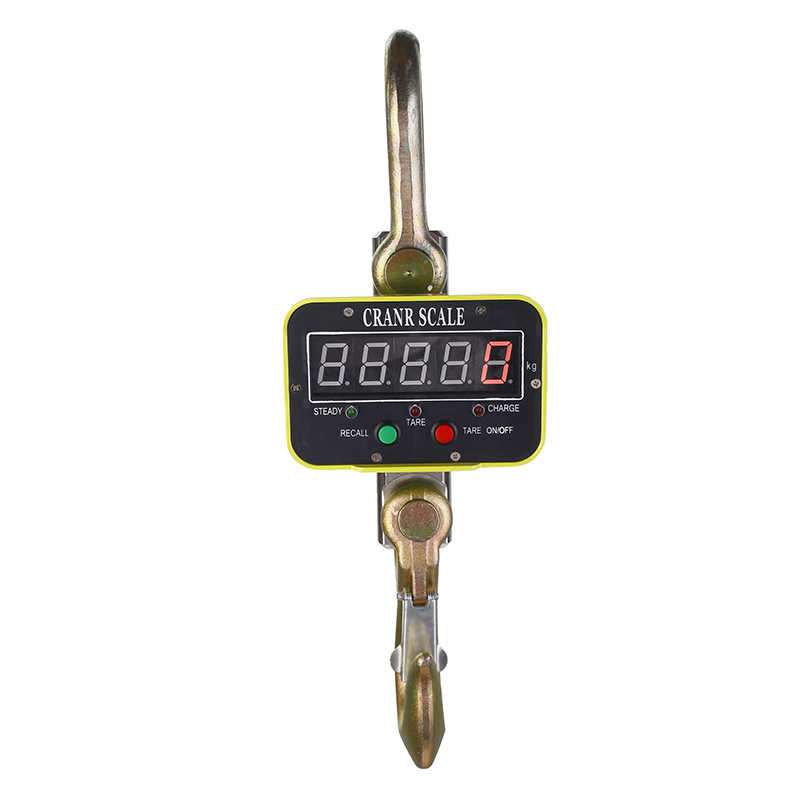

Crane Scale OCS-D2 - Heavy Duty Weighing Solution for Industrial Use
Features
● Zero/cumulative/keep
● Automatic zero tracking
● Overload alarm
● Shake resistance effect
● Aluminum alloy casing
● For large digital tube display high 30 mm (word)
● Dividing value of optional
● The battery voltage automatic detection
● Low battery warning and automatic
● Shutdown function to save power
Accuracy class | OIMLⅢ | Tare range | 100%F.S |
Zero range | 4%F.S | Safe load | 120%F.S |
Limit load | 500%F.S | Overload alarm | 100%F.S.+9e |
The battery specification | 6V/4Ah | Continuous working time | >80h |
The charger specification | 7.5V/1000mA | The remote control distance | ≥10m |
Temperature range | -10℃~40℃ |
|
|
Model | (T) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | H(mm) | kg | Pack size |
D2 | 1 | 50 | 268 | 27 | 185 | 130 | 370 | 6 | 61×31×26 |
2 | 50 | 268 | 33 | 185 | 130 | 380 | 6 | 61×31×26 | |
3 | 98 | 268 | 37 | 185 | 130 | 460 | 11.5 | 61x31×26 | |
5 | 115 | 268 | 45 | 185 | 130 | 530 | 14.7 | 61×31×26 | |
10 | 123 | 268 | 50 | 185 | 130 | 595 | 19 | 71×34×31 |
Size
