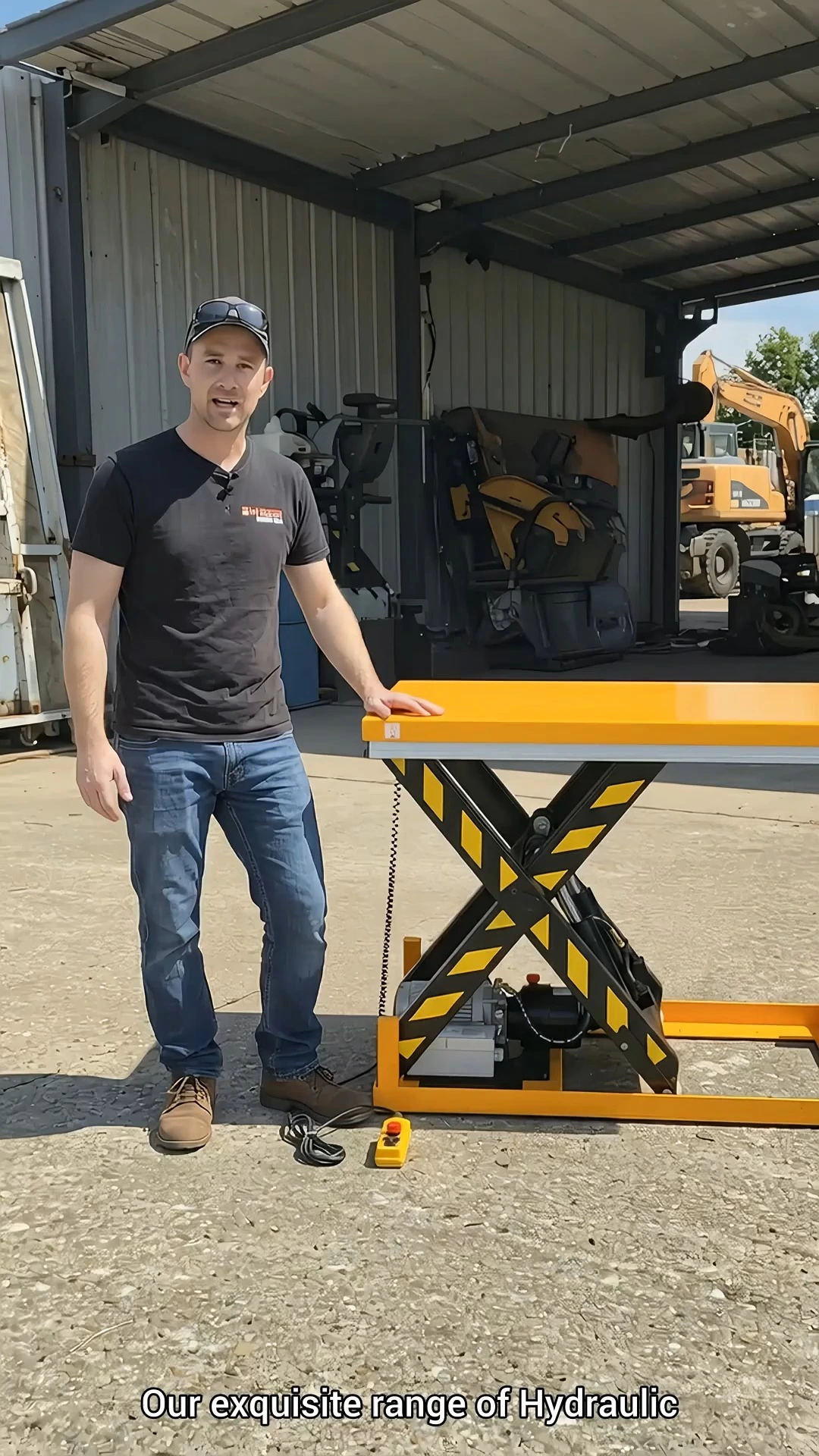

Electric lift table HW series
Features
● Heavy duty design, apply to AC 380V/50Hz.
● Imported high quality pump station,lifting is stable.
● Patented safey system on platform,ensure the table decline in the course of an obstacles stop falling.
● To using scissors design, with overload protection , protecting your safety.
● With safety wedge to facilitate maintenance .
● the products are widely used in manufacturing,maintenance industries.
● conforms to EN 1757-2,U.S.ANSI/ASME.
|
Model |
Rated lifting capacity (Kg) |
Min height/Max height (mm) |
platform size (mm) |
Base size (mm) |
Elevating time (s) |
Power parameters |
N.W. |
|
HW1001 |
1000 |
205/990 |
1300x820 |
1240x640 |
20-25 |
380V/50HZ |
160 |
|
HW1002 |
1000 | 205/990 |
1600x1000 |
1240x640 | 20-25 | 380V/50HZ | 186 |
|
HW1003 |
1000 |
240/1300 |
1700x850 |
1580x640 | 30-35 | 380V/50HZ | 200 |
|
HW1004 |
1000 | 240/1300 |
1700x1000 |
1580x640 | 30-35 | 380V/50HZ | 210 |
|
HW1005 |
1000 | 240/1300 |
2000x850 |
1580x640 | 30-35 | 380V/50HZ | 212 |
|
HW1006 |
1000 | 240/1300 |
2000x1000 |
1580x640 | 30-35 | 380V/50HZ | 223 |
|
HW1007 |
1000 | 240/1300 |
1700x1500 |
1580x1320 | 30-40 | 380V/50HZ | 365 |
|
HW1008 |
1000 | 240/1300 |
2000x1700 |
1580x1320 | 30-40 | 380V/50HZ | 430 |
|
HW2001 |
2000 |
230/1000 |
1300x850 |
1220x785 |
20-25 | 380V/50HZ | 235 |
|
HW2002 |
2000 | 230/1000 |
1600x1000 |
1220x785 | 20-25 | 380V/50HZ | 268 |
|
HW2003 |
2000 |
250/1300 |
1700x850 |
1600x785 | 25-35 | 380V/50HZ | 289 |
|
HW2004 |
2000 |
250/1300 |
1700x1000 |
1600x785 | 25-35 | 380V/50HZ | 300 |
|
HW2005 |
2000 | 250/1300 |
2000x850 |
1600x785 | 25-35 | 380V/50HZ | 300 |
|
HW2006 |
2000 | 250/1300 |
2000x1000 |
1600x785 | 25-35 | 380V/50HZ | 315 |
|
HW2007 |
2000 | 250/1400 |
1700x1500 |
1600x1435 | 25-35 | 380V/50HZ | 415 |
|
HW2008 |
2000 | 250/1400 |
2000x1800 |
1600x1435 | 25-35 | 380V/50HZ | 500 |
|
HW4001 |
4000 |
240/1050 |
1700x1200 |
1600x900 |
30-40 | 380V/50HZ | 375 |
|
HW4002 |
4000 | 240/1050 |
2000x1200 |
1600x900 | 30-40 | 380V/50HZ | 405 |
|
HW4003 |
4000 |
300/1400 |
2000x1000 |
1980x900 | 30-40 | 380V/50HZ | 470 |
|
HW4004 |
4000 | 300/1400 |
2000x1200 |
1980x900 | 35-40 | 380V/50HZ | 490 |
|
HW4005 |
4000 | 300/1400 |
2200x1000 |
1980x900 | 35-40 | 380V/50HZ | 480 |
|
HW4006 |
4000 | 300/1400 |
2200x1200 |
1980x900 | 35-40 | 380V/50HZ | 505 |
|
HW4007 |
4000 |
350/1300 |
1700x1500 |
1620x1400 |
35-45 | 380V/50HZ | 570 |
|
HW4008 |
4000 | 350/1300 |
2200x1800 |
1620x1400 | 35-45 | 380V/50HZ | 655 |
