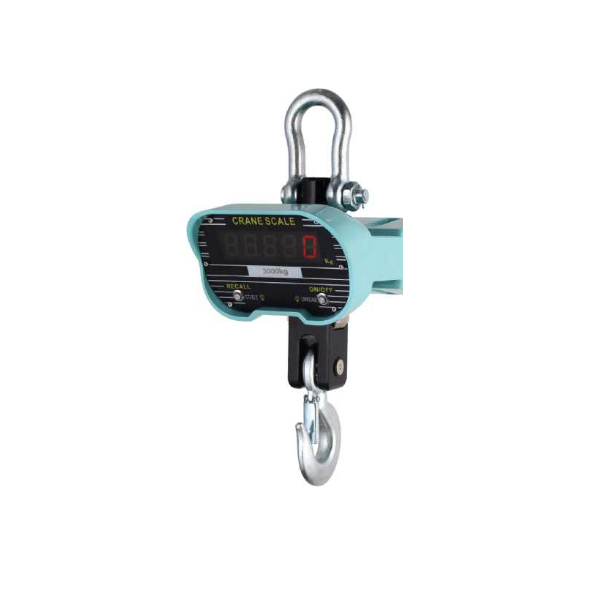

OCS-H3 Crane Scale
Features
● High quality alloy steel load components
● All steel impact resistant casing
● Word high 30mm led display
● High intensity activity type rings
● High-capacity rechargeable battery
● Stainless steel panel buttons
● Infrared remote contr이
● OCS - H3 Series specifications: 1000kg to 20000kg
● OCS - H6 Series specifications: 1000kg to 50000kg
Specification
|
Accuracy class |
OIML III |
Tare range |
100%F.S |
|
Zero range |
4%F.S |
Safe load |
120%F.S |
|
Limit load |
500%F.S |
Overload alarm |
100%F.S.+9e |
|
The battery specification |
6V/4Ah |
Continuous working time |
>80h |
|
The charger specification |
7.5V/1000mA |
The remote control distance |
210m |
|
Temperature range |
-10°C 〜40°C |
|
|
Dimension and Division
|
Model |
(T) |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
H(mm) |
kg |
Pack size |
|
H3 |
1 |
95 |
175 |
27 |
260 |
200 |
530 |
12 |
48.5x44x26 |
|
2 |
95 |
175 |
32 |
260 |
200 |
570 |
13 |
48.5x44x26 |
|
|
3 |
125 |
175 |
37 |
260 |
200 |
590 |
14 |
48.5x44x26 |
|
|
5 |
125 |
175 |
40 |
260 |
200 |
680 |
16 |
48.5x44x26 |
|
|
10 |
125 |
175 |
50 |
260 |
200 |
735 |
26 |
48.5x44x26 |
Specification
|
Accuracy class |
이ML III |
Tare range |
100%F.S |
|
Zero range |
4%F.S |
Safe load |
120%F.S |
|
Limit load |
500%F.S |
Overload alarm |
100%F.S.+9e |
|
The battery specification |
6V/10Ah |
Continuous working time |
>80h |
|
The charger specification |
9V/1500mA |
The remote control distance |
210m |
|
Temperature range |
-10°C 〜40°C |
|
|
Dimension and Division
|
Model |
(T) |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
H(mm) |
kg |
Pack size |
|

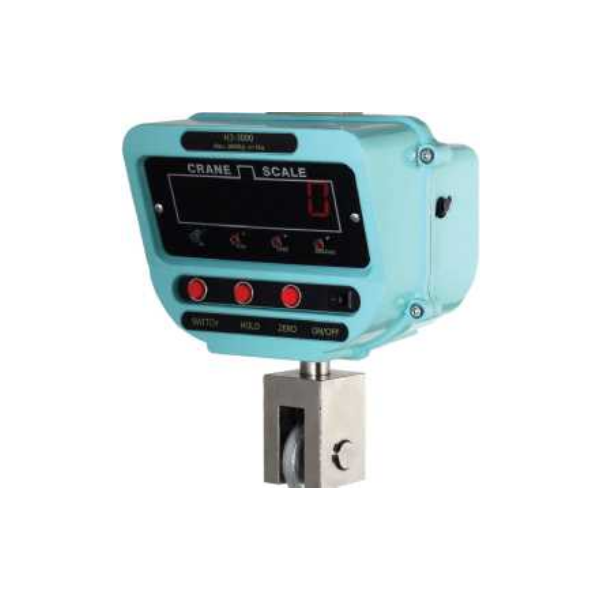

H6 |
1 |
95 |
345 |
27 |
230 |
160 |
470 |
11.1 |
49x45x29 |
|
2 |
95 |
345 |
32 |
230 |
160 |
475 |
11.3 |
49x45x29 |
|
|
3 |
95 |
345 |
37 |
230 |
160 |
570 |
12.2 |
49x45x29 |
|
|
5 |
115 |
345 |
40 |
230 |
160 |
610 |
16.9 |
49x45x29 |
|
|
10 |
115 |
345 |
50 |
230 |
160 |
725 |
30.3 |
49x45x29 |
|
|
15 |
115 |
345 |
65 |
230 |
160 |
820 |
33 |
Box80x40x40 |
|
|
20 |
225 |
345 |
85 |
230 |
160 |
1100 |
52 |
Box80x40x40 |
|
|
30 |
160 |
345 |
105 |
230 |
160 |
1150 |
95 |
Box80x40x40 |
