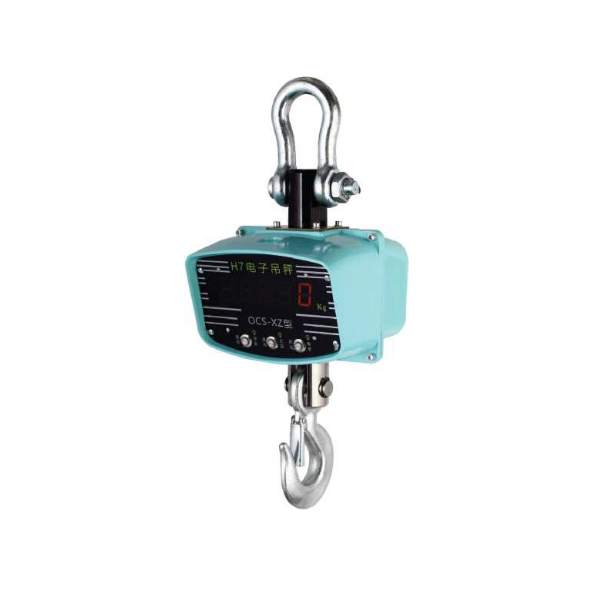

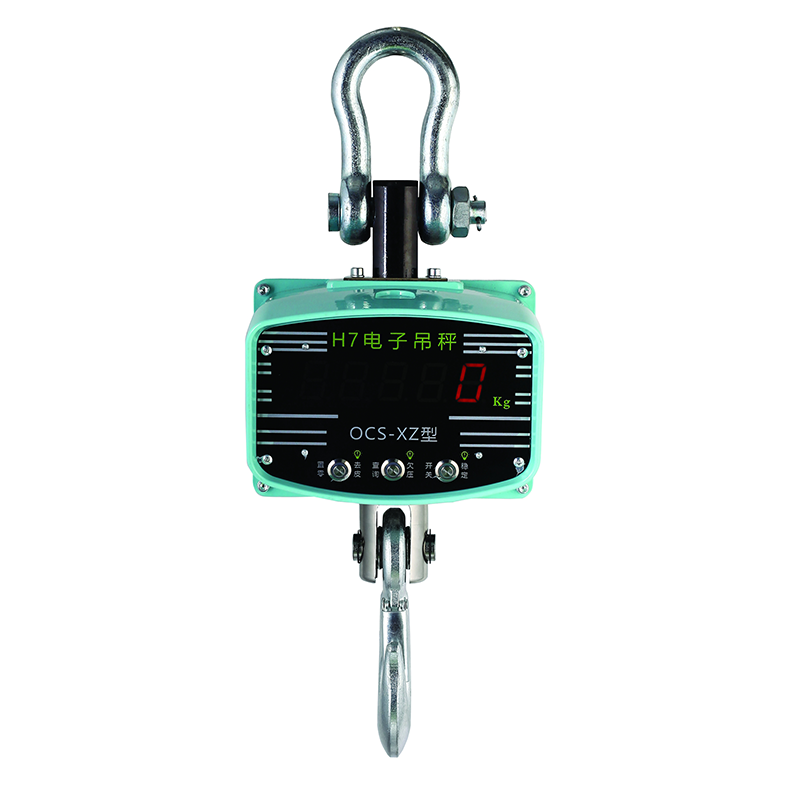

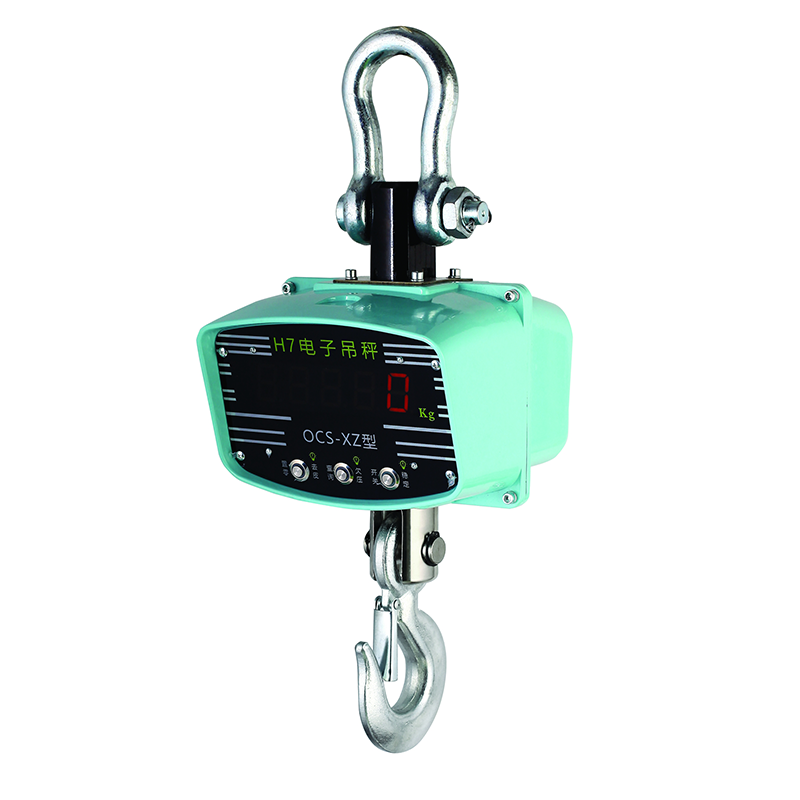

Heavy-Duty Crane Scale OCS-H7 for Accurate Load Weighing Solutions
Features
● High quality alloy steel load components
● All steel impact resistant casing
● Word high 30mm led display
● High intensity activity type rings
● High-capacity rechargeable battery
● Stainless steel panel buttons
● Infrared remote control
● Series specifications: 1000kg to 10000kg
Accuracy class | 이ML III | Tare range | 100%F.S |
Zero range | 4%F.S | Safe load | 120%F.S |
Limit load | 500%F.S | Overload alarm | 100%F.S.+9e |
The battery specification | 6V/4Ah | Continuous working time | >80h |
The charger specification | 7.5V/1000mA | The remote control distance | 210m |
Temperature range | --10°C 〜40°C |
|
|
Model | (T) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | H(mm) | kg | Pack size |
H7 | 1 | 45 | 230 | 27 | 210 | 130 | 360 | 5.3 | 48.5x44x30.5 |
2 | 45 | 230 | 32 | 210 | 130 | 380 | 5.5 | 48.5x44x30.5 | |
3 | 100 | 230 | 37 | 210 | 130 | 460 | 11.8 | 48.5x44x30.5 | |
5 | 112 | 230 | 40 | 210 | 130 | 530 | 12.5 | 48.5x44x30.5 | |
10 | 125 | 230 | 50 | 210 | 130 | 600 | 17.5 | 48.5x44x30.5 |
Size
