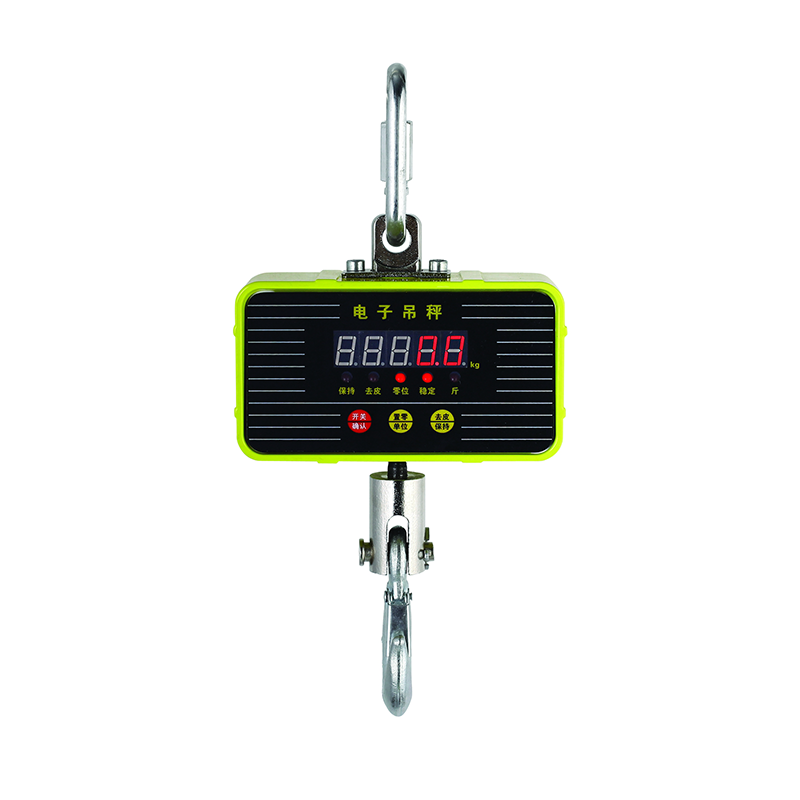

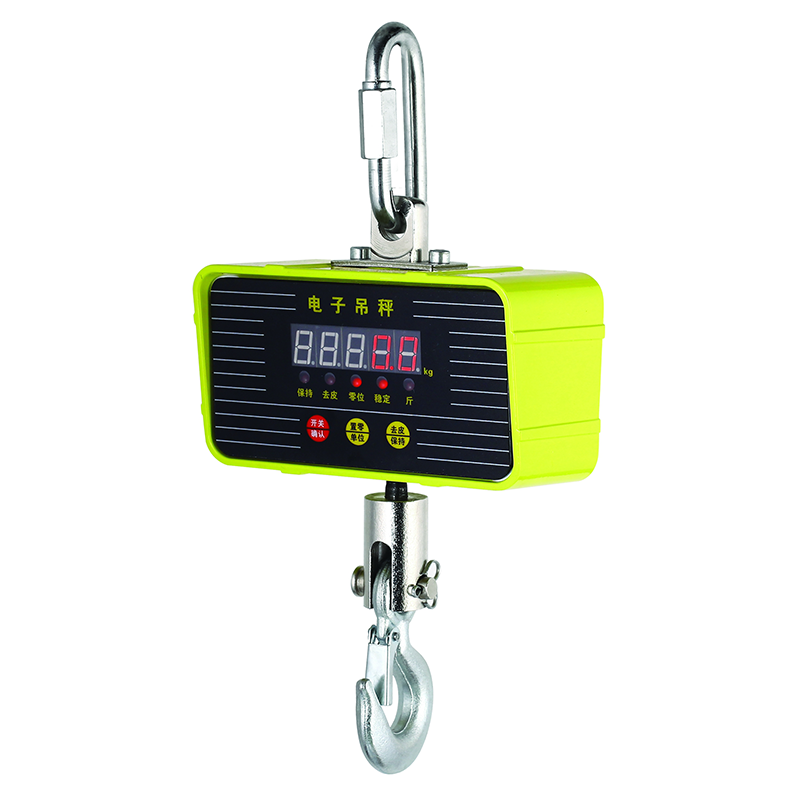

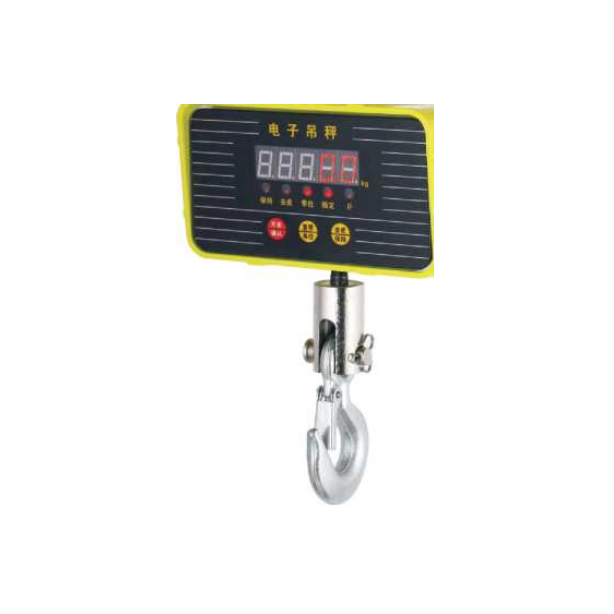

OCS-H01 Crane Scale
Features
● High quality alloy steel load components
● All steel impact resistant casing
● 0.56" LED display
● High intensity activity type rings
● High-capacity rechargeable battery
● Stainless steel panel buttons
● Infrared remote control
● Series specifications: 100kg to 2000kg
|
Accuracy class |
OIML III |
Tare range |
100%F.S |
|
Zero range |
4%F.S |
Safe load |
120%F.S |
|
Limit load |
500%F.S |
Overload alarm |
100%F.S.+9e |
|
The battery specification |
AA1350mah1.2v*3 |
Continuous working time |
>50h |
|
The charger specification |
4.5V/500mA |
The remote control distance |
NlOm |
|
Temperature range |
-10 to +40 |
|
|
|
Model |
(T) |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
H(mm) |
kg |
Pack size |
|
H01 |
0.3 |
63 |
80 |
20 |
158 |
90 |
285 |
1.5 |
30x25x13 |
|
0.5 |
63 |
80 |
20 |
158 |
90 |
285 |
1.5 |
30x25x13 |
|
|
1 |
63 |
80 |
20 |
158 |
90 |
285 |
3.3 |
30x25x13 |
|
|
1.5 |
63 |
80 |
20 |
158 |
90 |
285 |
3.3 |
30x25x13 |
Size
