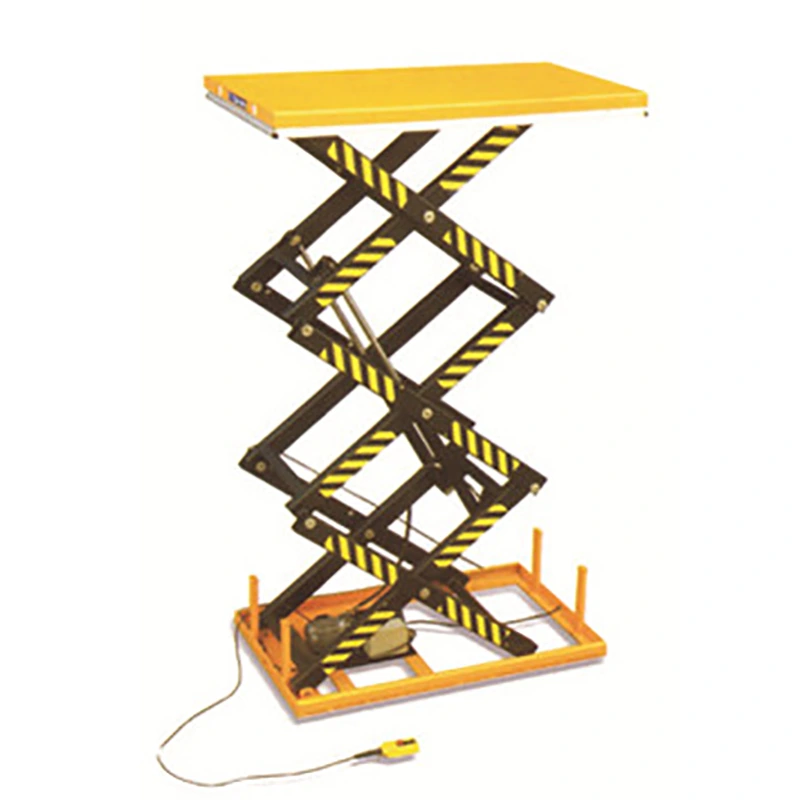

Hydraulic Lifting Ladder HT SERIES for Industrial Application
Heavy duty design.
Conforms to EN 1757-2,U.S.ANSI/ASME
European electric unit,and reliable quality
Standard safety facilities.
Patented Aluminum safety block bar device on platform,ensure the table decline in the course of an obstacles stop falling.
The internal power unit with a pressure relief valve to prevent overload, the flow control valve controls the rate of declinee
Using scissors design
Heavy duty cylinder with a drainage device and check valve, it can stop the table falling when oil pipes burst.
Patented Aluminum safety block bar device on platform,ensure the table decline in the course of an obstacles stop falling.
The internal power unit with a pressure relief valve to prevent overload, the flow control valve controls the rate of declinee
Using scissors design
Heavy duty cylinder with a drainage device and check valve, it can stop the table falling when oil pipes burst.
Other security measures
With self-sufficiency lubricating bushings at the pivot point.
Removable liftingeyebolts can help the operation and installation of the lifting table
With self-sufficiency lubricating bushings at the pivot point.
Removable liftingeyebolts can help the operation and installation of the lifting table
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Model | HT1000 | HT2000 | |
| Rated lifting capacity(Kg) | 1000 | 2000 | |
| Min height(mm) | 470 | 560 | |
| Max height(mm) | 3000 | 3000 | |
| platform size(mm) | 1700x1000 | 1700x1000 | |
| Base size(mm) | 1600x1000 | 1606x1010 | |
| Elevating time(sec) | 35~45 | 50-60 | |
| Hydraulic power | 380V/50Hz, AC2.2kw | ||
| N.W.(Kg) | 450 | 750 | |
