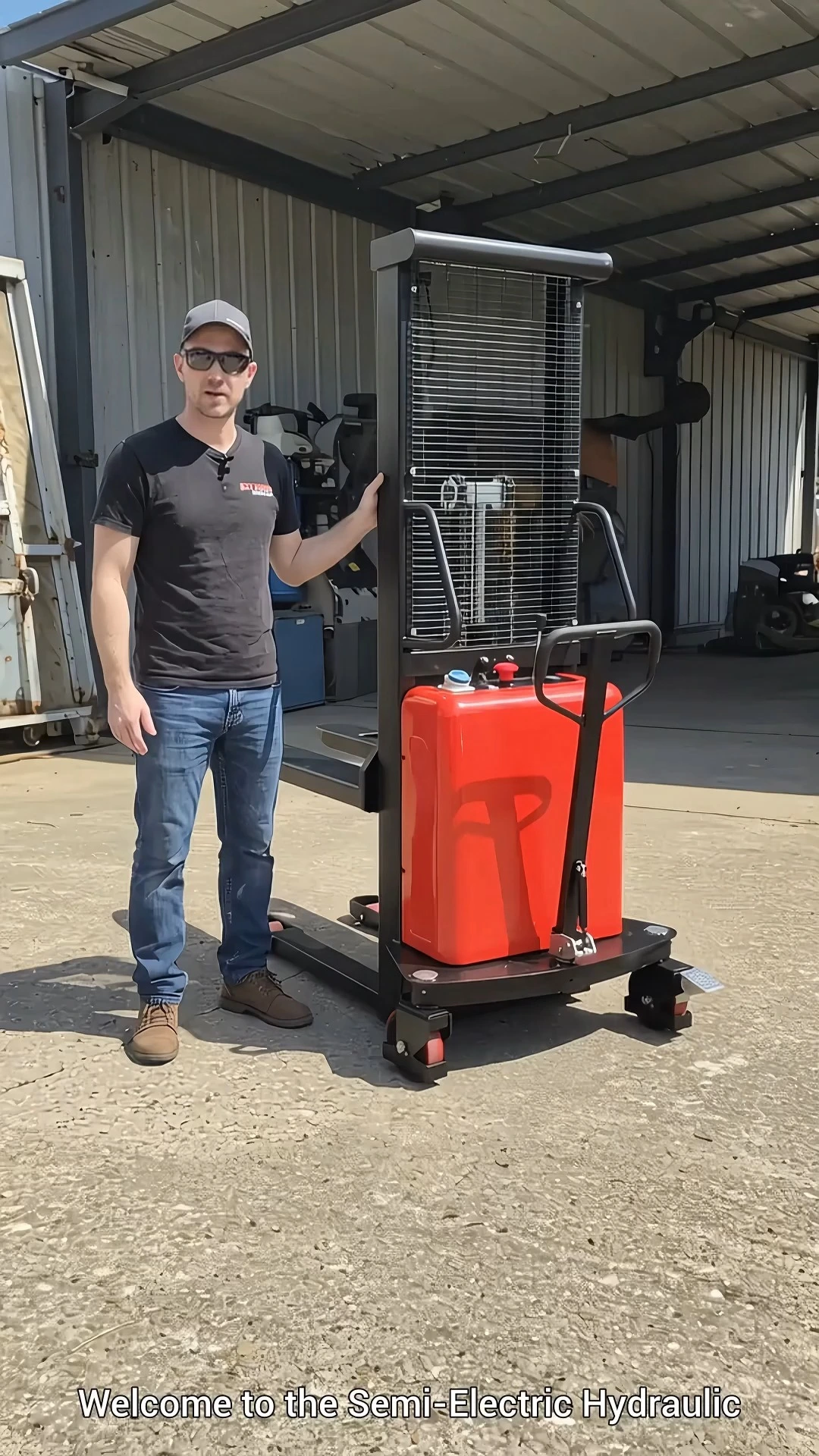

SEMI ELECTRIC STACKER SPN - Efficient Warehouse Handling Equipment
Characteristic
1. The frame can be equipped with high-strength U-shaped channel steel or C-shaped steel
2. Ergonomic handlebars shall be provided
3. High strength fork, more stable load
4. With external charger
5. Forging fork is optional
2. Ergonomic handlebars shall be provided
3. High strength fork, more stable load
4. With external charger
5. Forging fork is optional
6. A variety of fork forms can be selected: adjustable fork 330-685mm, suitable for single-sided pallets of 1000X1000mm and above
Fixed fork 550x1150mm is suitable for single side 800x1000mm narrow pallet
Fixed fork 550x1150mm is suitable for single side 800x1000mm narrow pallet
The adjustable fork 330-850mm is suitable for any conventional single-sided pallet
5.0
Place of Origin:
CHINA
Warranty:
One Year Not Include The Quick-Wear Parts
After-sales Service:
One Year Not Include The Quick-Wear Parts
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Model | SPN1016 | SPN1516 | SPN2016 | |
| Load capacity | Kg | 1000 | 1500 | 2000 |
| Min height | mm | 85 | 85 | 85 |
| Max lifting height | mm | 1600 | 1600 | 1600 |
| Fork length | mm | 1150 | 1150 | 1150 |
| Fork width | mm | 330-685/330-850/550 | ||
| Leg width | mm | 690/510/510 | ||
| Turning radius | mm | 1450 | ||
| Battery | v/ah | 12/120 | ||
| Charger | VIA | 12/15 | ||
| Motor | V/kW | 12/1.6 | ||
| Load wheel | mm | 180*50 | ||
| Frontwheel | mm | 80*93 | ||
| Overall size | mm | 1850*800*2030 | ||
| Net weight | kg | 326 | 355 | 390 |
| Model | SPN1020 | SPN1025 | SPN1030 | SPN1035 | SPN1520 | SPN1525 | SPN1530 | SPN1535 | SPN2020 | |
| Load capacity | Kg | 1000 | 1500 | 2000 | ||||||
| Min height | mm | 85 | 85 | 85 | 85 | 85 | 85 | 85 | 85 | 85 |
| Max lifting height | mm | 2000 | 2500 | 3000 | 3500 | 2000 | 2500 | 3000 | 3500 | 2000 |
| Fork length | mm | 1150 | 1150 | 1150 | 1150 | 1150 | 1150 | 1150 | 1150 | 1150 |
| Fork width | mm | 330-685/330-850/550 | ||||||||
| Leg width | mm | 620/510/510 | ||||||||
| Turning radius | mm | 1350 | ||||||||
| Battery | v/ah | 12/120 | ||||||||
| Charger | VIA | 12/15 | ||||||||
| Motor | V/kW | 12/1.6 | ||||||||
| Load wheel | mm | 180*50 | ||||||||
| Frontwheel | mm | 80*93 | ||||||||
| Overall size | mm | 1850*800*1580 | 1850*800*1800 | 1850*800*2080 | 1850*800*2260 | 1850*800*1580 | 1850*800*1800 | 1850*800*2080 | 1850*800*2260 | 1850*800*1580 |
| Net weight | kg | 390 | 412 | 435 | 460 | 390 | 412 | 435 | 460 | 450 |
